Portfolio & Specifications for Indian Register of Shipping (IRS) Class Vessels
- IRS Class Certified
- Port Blair, Andaman & Nicobar Islands
- Authority: IRCLASS
Steel Cargo Vessel
300T DWT Steel Cargo Carrier (Project W063)
The 300T Deadweight (DWT) Cargo Carrier is a rugged commercial short-sea vessel engineered by WMarine Design & Construction Services under Project No. P063 (Drawing No. WMDCS-P063-A01). Tailored for logistical deployment by Star Shipping Logistics Pvt. Ltd. and constructed at the MA Marines facility, this platform features an expansive main deck layout optimized for dry bulk, break-bulk, or containerized transit across coastal networks.
Technical Specs
Technical Parameter Design Specification
| Vessel Type / Design | 300T DWT Commercial Cargo Carrier |
|---|---|
| Design Project Reference | Project W063 / Drawing WMDCS-P063-A01 |
| Primary Engineering Firm | WMarine Design & Construction Services |
| Project Owner / Operator | Star Shipping Logistics Pvt. Ltd. |
| Shipyard / Builder | M/S MA MARINES (MAM / 01) |
| Length Overall (LOA) | 33.000 Meters |
| Main Cargo Deck Layout | Raised Main Deck (4900 ABL), Main Deck (3700 ABL), Tank Top (900 ABL) |
| Dry Cargo Hold Dimensions | Clear Hatch Opening: 10.0 meters x 4.0 meters |
| Superstructure Layout | Wheelhouse Deck (6000 ABL), Wheelhouse Top (8300 ABL) |
Accommodations
Accommodations & Facilities
| Officer Accommodations | Master Cabin (7.60 m²), Chief Engineer Cabin (7.50 m²), 2-Man Officer Suite (7.60 m²) |
|---|---|
| Crew Accommodations | 2-Man Crew Cabin A (7.50 m²), 2-Man Crew Cabin B (7.31 m²), Petty Officer Cabin (7.33 m²) |
| Domestic Facilities | Fully Integrated Galley (5.9 m²), Crew Mess Room (5.9 m²), Dedicated Laundry Room |
Machinery
Machinery & Regulatory
| Machinery Spaces | Aft Engine Room, Separate Steering Gear Room, Emergency Escape Trunk (ER ESC) |
|---|---|
| Regulatory Approvals | Approved for Classification via IRS Official Letter Reference E-260716-347190 |
| Design Revisions | Rev 01: FO TK-5 configuration updated and Wheelhouse Deck layout optimized |
16M Passenger Ferry
- Active Keel & Fabrication Phase
- Registered at Port Blair
- Coastal & Inland Operations

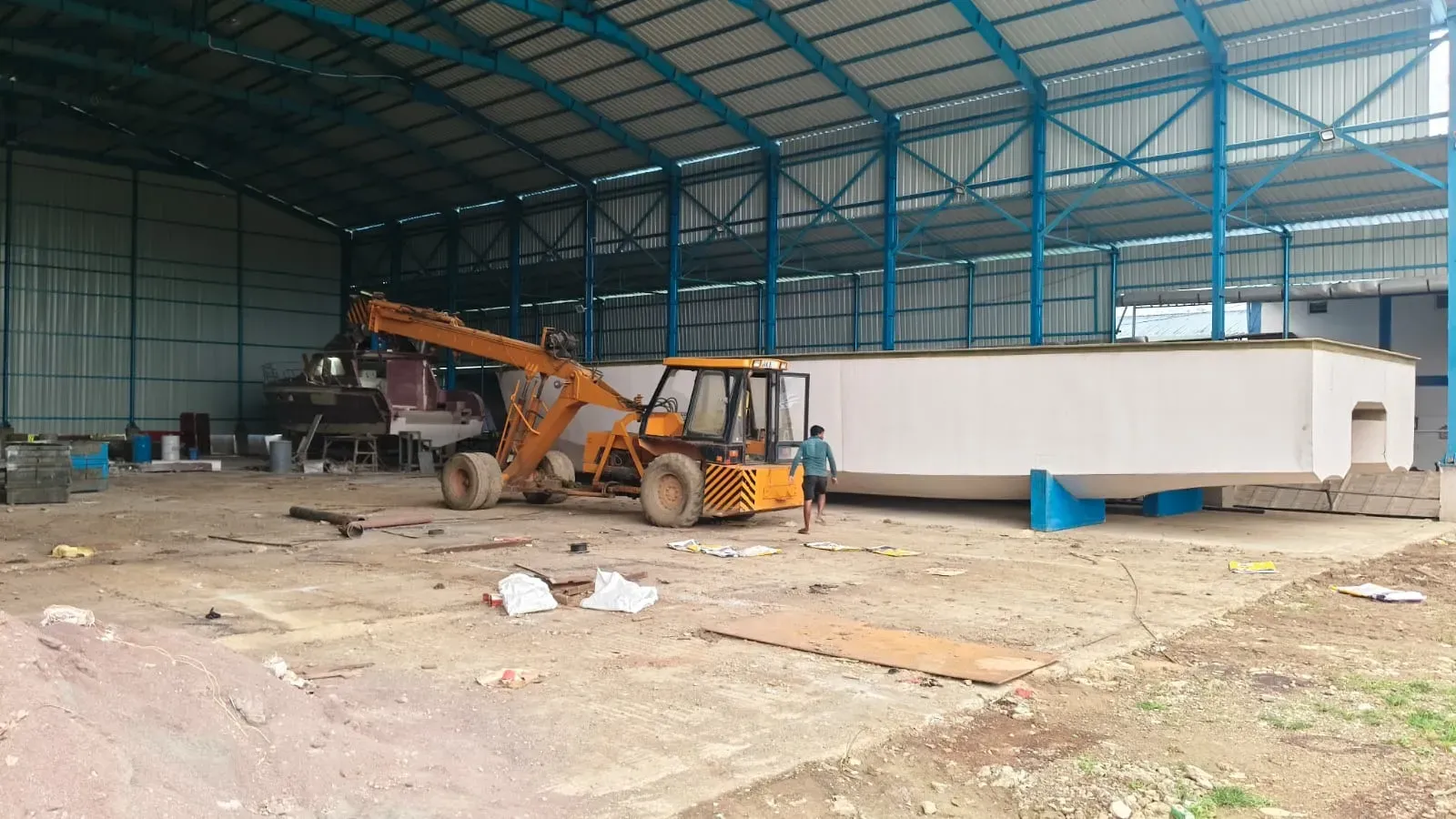

16M Passenger Ferry (PROJECT NM-24-30)
Shipyard Production in Pipeline & Sister Ships
This state-of-the-art 16-Meter Passenger Ferry is designed specifically for robust coastal and inland operations, this vessel balances high passenger density with optimized machinery arrangements, featuring separate specialized watertight bulkheads, double voids, and dedicated crew spaces to ensure peak safety and compliance.
Technical Specs
Technical Parameter Design Specification
| Vessel Design Project | NM-24-30 (General Arrangement Rev 00) |
|---|---|
| Complement Capacity | 100 Passengers + 5 Crew Members |
| Primary Hull Layout | Wheel House, Main Deck, Engine Room, Fore Peak, Str. Room, Voids 1 & 2 |
| Hull Construction Material | High-Tensile Structural Steel |
| Yard Identification No. | Yard No: 01-01 / Hull 01/01 |
| Operating Flag & Registry | Indian Flag, Registered at Port Blair |
| Operational Profile | Within and Beyond IV Limits of Andaman & Nicobar Islands |
| Classification Notation | IWL, PASSENGER, ZONE 1, IY (Inland Classification) |
Dimensions
Main Dimensions & Capacities
| Main Dimensions | Length Overall: 15.000 m | Breadth (Mld): 4.800 m | Depth (Mld): 2.200 m |
|---|---|
| Design & Scantling Draft | Design Draught: 1.250 m | Scantling Draught: 1.150 m |
| Tonnage & Deadweight | Gross Tonnage: 33 GT | Estimated Deadweight: 6.625 Tonnes |
| Total Displacement | 40.700 Tonnes at design draught |
Propulsion
Propulsion & Systems
| Estimated Service Speed | 10 Knots |
|---|---|
| Propulsion Arrangement | Conventional Twin-Shaft Diesel Propulsion (02 Shaft Lines) |
| Main Engines | 2 x Diesel Engines, rating 112 kW @ 2000 RPM each (Single Fuel) |
| Reduction Gearbox | Rating: 210 kW @ 2400 RPM | Reduction Ratio: 4:1 |
| Steering System | Heavy-Duty Hydraulic Steering Gear |
| Primary Electrical Source | 1 x Diesel Generator, Alternator Rating: 10 kVA |
| Emergency Power Source | 4 x Emergency Batteries, Rating: 200 AH / Volts pack |
Milestones
Project Milestones
- Fabrication & Keel Laying: 05-02-2026
- Launch: 05-05-2026
- Delivery: 25-05-2026
High-Performance Recreational Watercraft
- Custom Built
- High Speed
Jet car Boat with 115 hp Suzuki OBM
Sports Car Aesthetics on Water (From Road to ocean, Meet our Jet car Boat)
The Jet Car Boat combines the sleek, aggressive styling of a modern sports car with the hydrodynamic performance of a high-speed watercraft. Powered by a robust 115 HP Suzuki Outboard Motor, this custom-built vessel offers unparalleled thrill and agility on the water.
